Overview

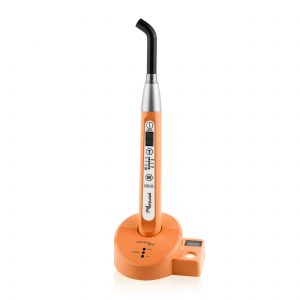

C01-D LED Curing Light with Fibre Optic Light Guide with Dual Wavelength
- Model – C01-D (Dual Range)
- F.O. Light Guide – 11mm (dia)
- Light Wavelength – 390~430nm/440~480nm (dual wavelength enables the unit to cure all composites on the market today)
- Application – Ortho/General
- Mode –
- Tack – 2,000 mW/cm2 for 1 second ± 10%
- Turbo – 2,000 mW/cm2 for 4 seconds ± 10%
- 3′ + 3′ – 2,000 mW/cm2 for 3 + 3 seconds ± 10% (with 1 second blink in between)
- 6′ + 6′ – 1,500 mW/cm2 for 6 + 6 seconds ± 10% (with 1 second blink in between)
- Full – 1,200 mW/cm2 for 5, 10, 15, 20 seconds ± 10%
- Ramp – 1st five seconds from 0 – 1,200 mW/cm2, next 5, 10 ,15, 20 seconds 1,200 mW/cm2 ± 10%
- Soft Cure – 1st five seconds from 0 – 900 mW/cm2, next 5, 10, 15, 20, 25 seconds 900 mW/cm2 ± 10
- C01 complete set with Built-In light intensity indicator
- 24 Month Warranty
- 12 Colours Available
- Compatiable with our 123L small curing light sleeves
- Spare parts available:
- C01-S/D1 11mm Fibre Optic Light Guide
- C01/2-1 Replacement Battery
